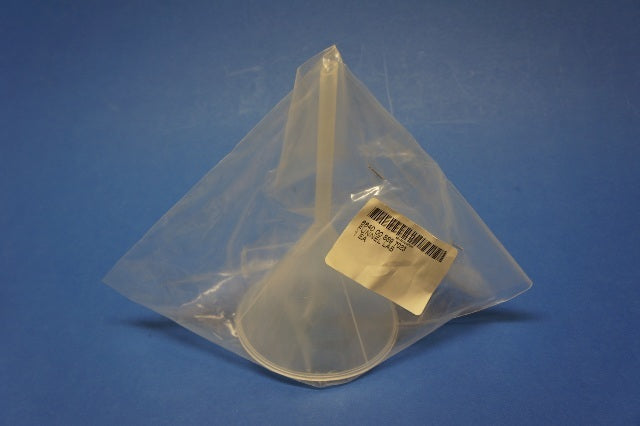

Funnel Common Lab Polypropylene Ribbed 100 mm

Funnel Common Lab Polypropylene Ribbed 100 mm
Nondefinitive spec/std data: 100 size

Iii part name assigned by controlling agency: funnel common lab polypropylene ribbed 100 mm inside diameter

Style designator: f2 ribbed cone and stem

Spec/std controlling data:

Stem length: 100.00 millimeters nominal

Stem outside diameter: 10.70 millimeters nominal

Manufacturers code: 81348

Stem tip angle: 45.0 degrees

Primary container type: box

Inside diameter: 100.00 millimeters nominal

Cone angle: 60.0 degrees

Capacity rating: 225.000 milliliters nominal

Special features: 4 each per package

Material: plastic, polypropylene

Primary container unit quantity: 1

Non-definitive government spec/std reference: nnnf001652
